Mounting Plate

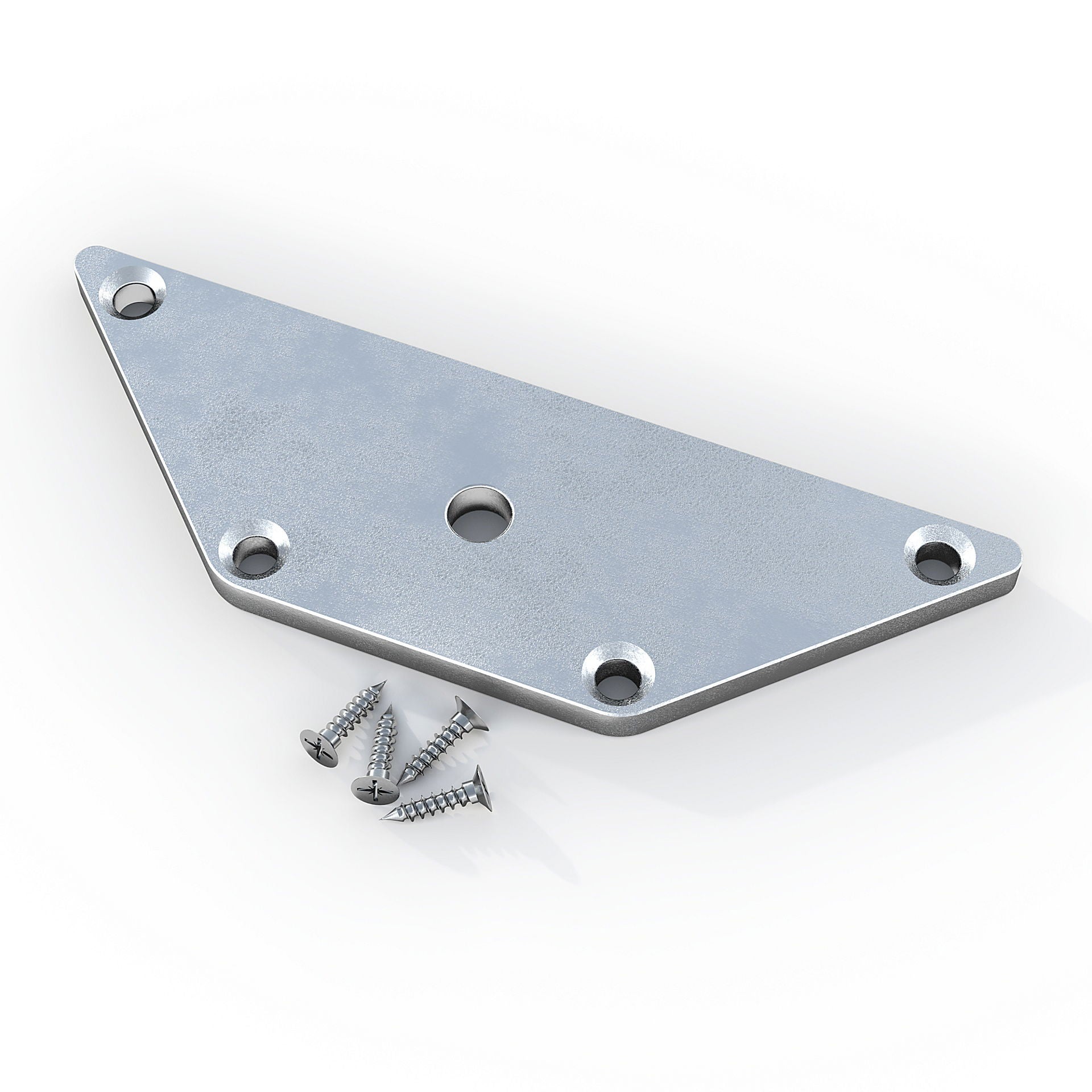

This steel mounting plate is used when the furniture lacks a standard fitting and consists of 1 part with four screws.

• 1 mounting plate with 4 screws

General Information

All Bemz legs have a fixed standard screw in M8 that fits into the furniture's standard fitting. When the furniture lacks a standard fitting, the Bemz mounting plate is required. The plate is made of steel, and the package contains one plate and four screws (purchase as many as needed for the number of legs).

Please note that Bemz furniture legs are not compatible with the IKEA mounting plates used to connect the modules in IKEA Söderhamn.

Assembly Instructions

• Screw the plate into the corner of the furniture with the included screws.
• The two short sides of the plate should align with the outside of the furniture frame.
• Then screw the selected Bemz leg into the centre hole.
• Repeat with additional mounting plates for each leg the furniture requires.

Article number: PLA100.
